5 axis Blade Saw and 5 axis Waterjet Machine
5 axis Blade Saw and 5 axis Waterjet Machine

5 axis Blade Saw and 5 axis Waterjet Machine

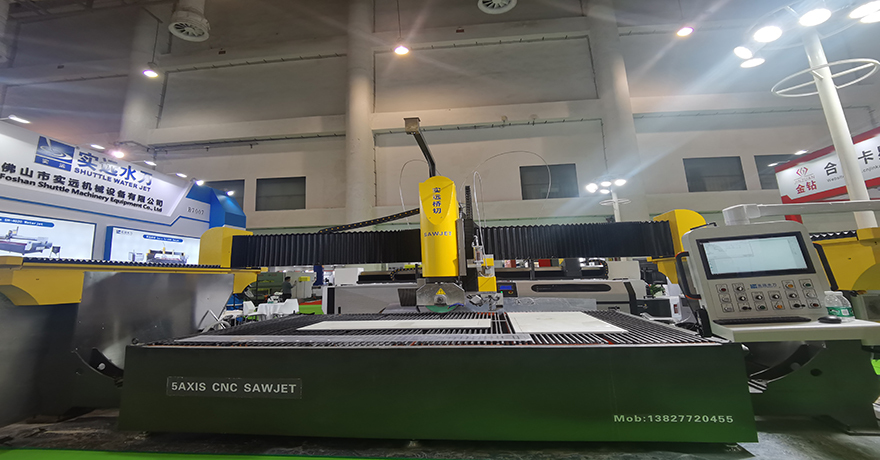

Shuttle CNC sawjet owns the functions of a bridge saw machine and a waterjet machine.

Its working dimension is up to 3400*2100mm, can help you cut granite, marble, quartz, and ceramic tiles.

It can also help you cut porcelain slabs, kitchen countertops, and sinks.



Product Details
Parameter



Series 5axis Blade Saw & 5axis Water Jet
External Dimension 6300*3350*3600mm
 Valid Cutting Dimension Blade Saw: 3400*2100mm
Water Jet: 3250*2000mm
Z axis 500mm
Cutting Degree Blade Saw: 0-±90°
Water Jet: 0-±60°
Cutting Accuracy Blade Saw: 0.08-0.15mm
Water Jet: 0.05-0.12mm
Power Blade Saw: 15kw
Water Jet: 40kw
Max Water Pressure 450mpa
Working Water Pressure 300-360mpa
Blade Model Ø350mm / Ø400mm / Ø450mm
Software Cut Cam







  Shuttle CNC sawjet owns the functions of a 5 axis bridge saw machine and a 5 axis waterjet machine.

  Its working dimension is up to 3400*2100mm, can help you cut granite, marble, quartz, and ceramic tiles.

  It can also help you cut porcelain slabs, kitchen countertops, and sinks.

  With the device of the laser scanning, it can auto measure the actual distance between the cutting head and the materials, then it saves in the software. During the cutting, it can auto adjust the height of the cutting head.
  For the updated software, it not only can change its cutting angles and speed but also can slow down its cutting speed when it meets the corner.
  The special design of the sand valve, we use the motor instead of the manual, and let the sand consumption control within 20kg per hour.
  As an intensifier pump that owns years’ experience, series 450 waterjet pump is updating all the time.
